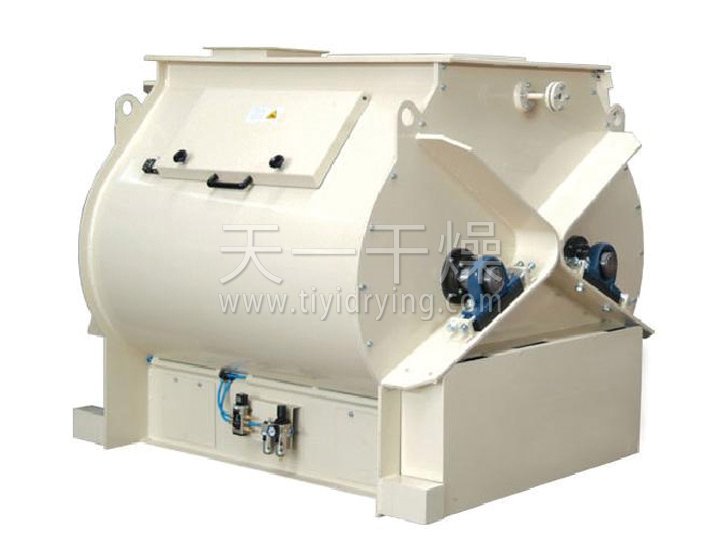

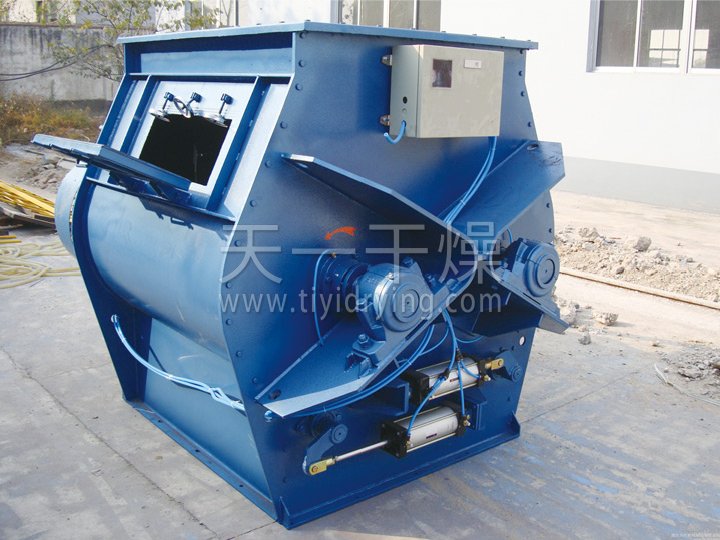

WZ Zero-Gravity Mixer

WORKING PRINCIPLE

WZ Series Zero-Gravity Mixer is a strong and high efficiency mixing machine. It has two mixing axles rotate reversely at an identical revolution in the horizontal drum body. The paddles are distributed on the axles to ensure that the material to move in the direction of radical, circulating, and axial. The material can be mixed evenly in a short time.

APPLICATION

It is suitable for the drying and mixing of the following materials: Chemicals, Detergents, Paints, Resins, Glass, Silicon, Paint, Pesticides, Fertilizers, Feed, Feed Additives, Wheat Flour, Milk Powder, Spices, Trace Elements, Coffee, Salt, Additives, Plastic, Pulps, Powder.

FEATURES

1. High mixing precision, high mixing speed, and low energy consumption. 2. The discharging method can be pneumatic, electrical, and manual. 3. The atomizing device can be distributed on the cylinder cover to realize the solid-liquid mixing.

Technical parameters

Model (m3)	WZ-0.05	WZ-0.1	WZ-0.3	WZ-0.5	WZ-1	WZ-2	WZ-3	WZ-4	WZ-6
Mixed amount/batch (kg)	24-30	40-60	120-180	200-300	400-600	800-1200	1200-1800	1600-2400	2400-3600
Equipped power (kW)	2.2	3	4-5.5	5.5-7.5	7.5-11	11-15	18.5-22	22-30	30-37
Weight (kg)	250	360	750	880	2100	2740	3800	5100	6200
