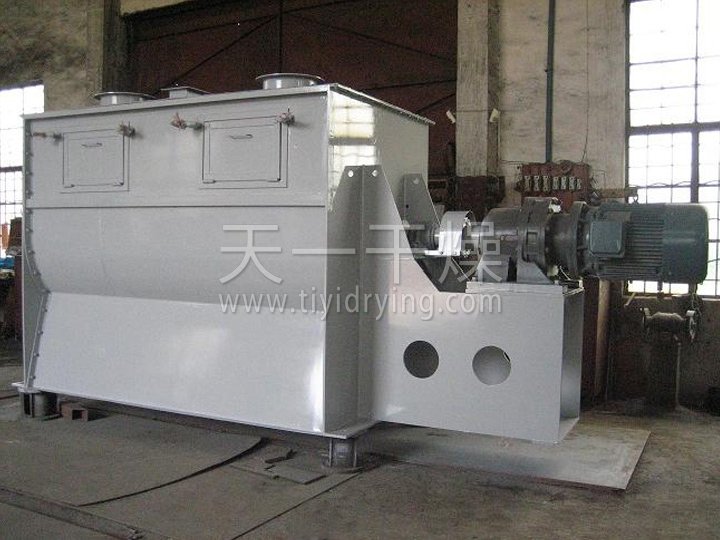

WLDH Horizontal Ribbon Mixer

WORKING PRINCIPLE

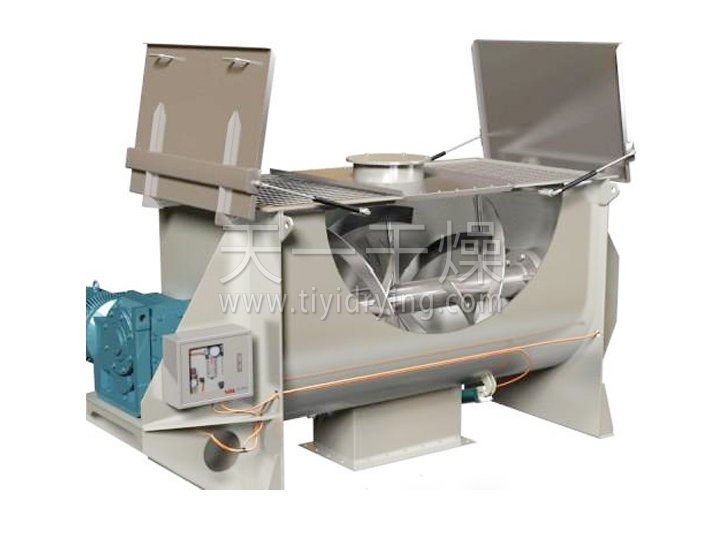

This machine consists of container, screw stirring paddles and transitional parts; the screw paddle usually has 2 or 3 layers, the outer screw will push the material from the sides to the center, and the inner screw will push the material from the center back to the sides, the convection mixing is form in this way.

FEATURES

1. Larger loading capacity and small occupied area. 2. It is difficult to clean when it is used to mix viscous or adhesive material.

APPLICATION

This mixer is mainly used in the mixing of viscous or adhesive powder material and powder material with liquid and paste added. Because it is difficult to clean for mixing viscous material, we recommend to use this machine for mixing large output production which doesn’t required to displacing variety material frequently.

Technical Parameter

Spec	WLDH-0.1	WLDH-0.3	WLDH-0.5	WLDH-1	WLDH-1.5	WLDH-2	WLDH-3	WLDH-4	WLDH-6	WLDH-8	WLDH-10
Mixed amount/batch (kg)	30-50	100-150	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
Power (kg)	1.5-4	3-3.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	37-55
Weight (kg)	300	500	900	1400	1900	2500	3100	3600	5300	6800	7800
