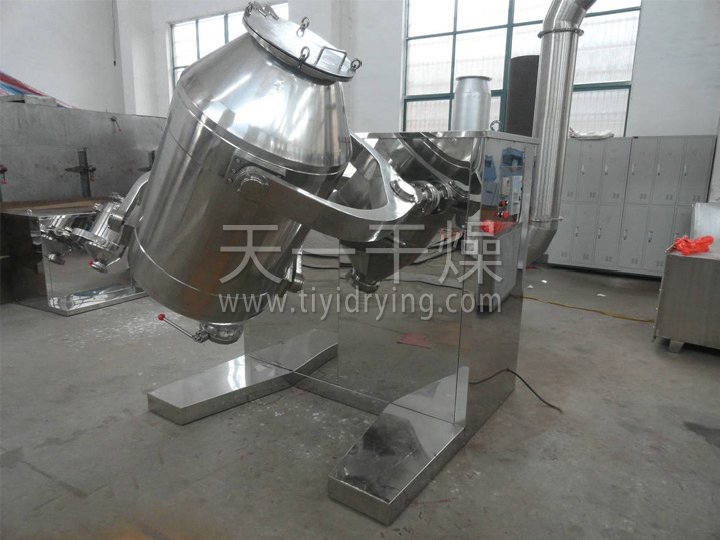

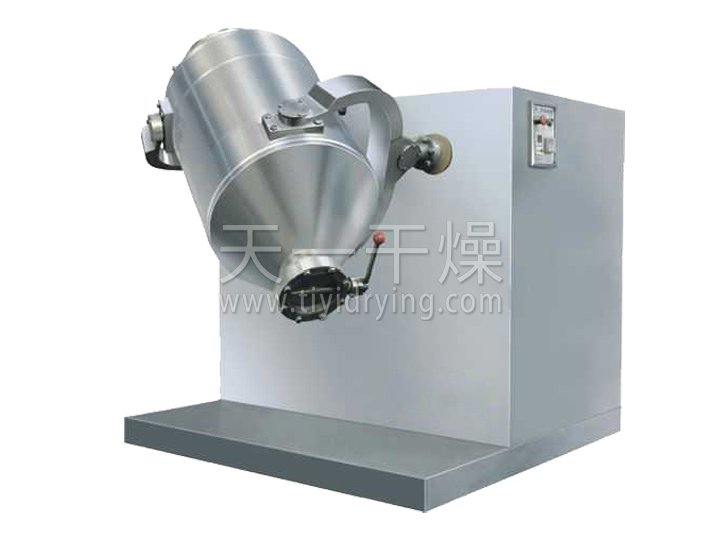

SYH 3D Motion Mixer

WORKING PRINCIPLE

The mixer body will parallel moving, rotating, and rolling with the driving of main shaft, and the materials will reacts 3D motions (circle, radial and axial direction) along the wall to realize the mutual flow, diffusion, accumulation and adulteration of multiple kinds of materials.

APPLICATION

1. The mixing barrel of the machine moves in multi-direction to avoid centrifugal force, specific gravity segregation and lamination. The mixing rate is up to 100% and it is the desired product in various mixers at present. 2. The maximum material loading rate can be up to 90 %( 50% for common mixers). It is a high efficiency and rapid mixing mixer. 3. The barrel uses the curve connection and fine polish treatment. 4. The machine is widely used for high uniformity mixing of powder and granule materials in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, and nation defense industries, as well as for science and technology institutes.

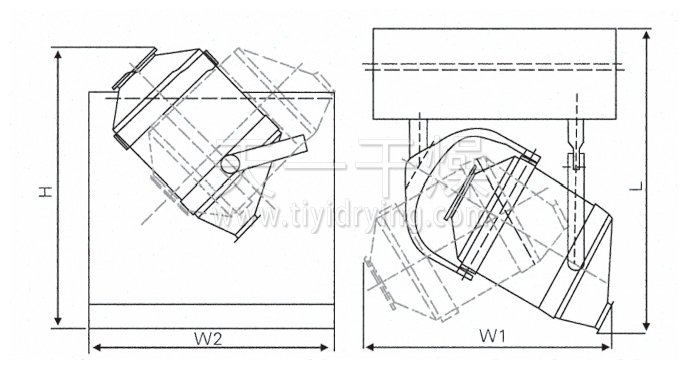

Structure diagram

Technical Parameter

Spec	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
Volume of barrel (L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Charge volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Charge weight (kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
Rotation speed of main shaft (r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
Motor power (kw)	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
L×W×H (mm)	600 ×1000 ×1000	800 ×1200 ×1000	1150 ×1400 ×1000	1250 ×1800 ×1550	1450 ×2000 ×1550	1650 ×2200 ×1550	1850 ×2500 ×1750	2100 ×2650 ×2000	2150 ×2800 ×2100	2000 ×3000 ×2260	2300 ×3200 ×2500	2500 ×3500 ×2800
Weight (kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000

Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.
