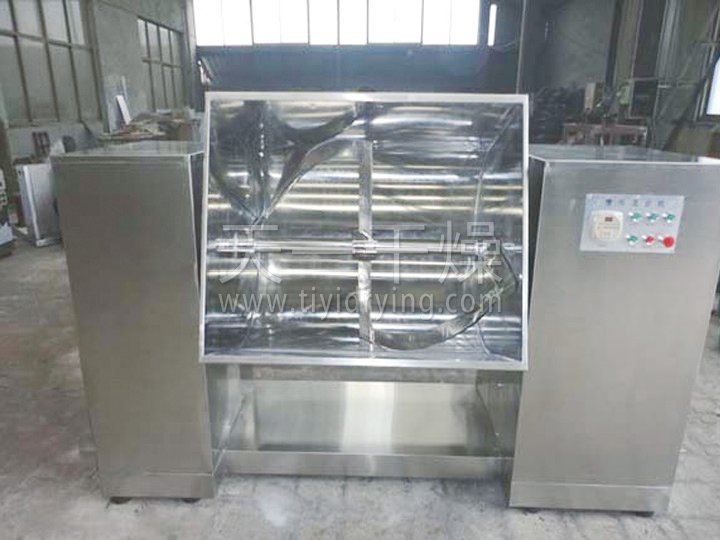

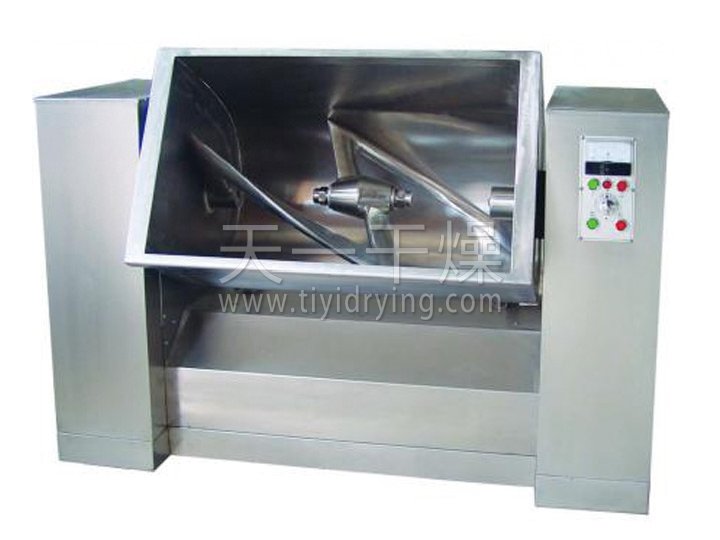

: CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform. The places where contact the raw materials are made of stainless steel…
0086-18962409901
It is particularly suitable for mixing powder or damp materials that required high uniformity and high specific gravity.
1. The raw materials contact area is made by stainless steel. 2. The gap between machine body and blades is small. 3. There is no dead corner in mixer. 4. The stirring shaft has sealing device in both ends to prevent the raw materials leaking out.
| capacity（L） | 100 | 150 | 200 | 400 |
| Power of motor (kw) | 2.2 | 3 | 3 | 5.5 |
| Speed of stirring (rpm) | 24 | 24 | 24 | 24 |
| Inclined (×) | 105 | 105 | 105 | 105 |
| Weight (kg) | 350 | 500 | 650 | 1200 |
| Overall dimensions (mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it’s over .
