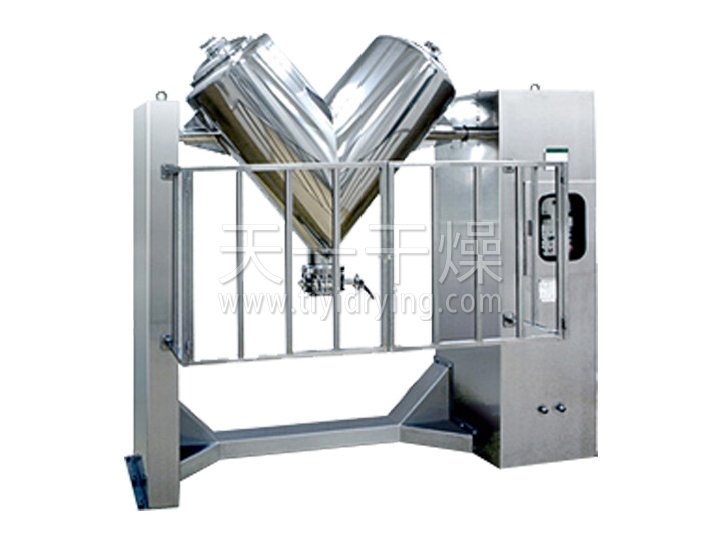

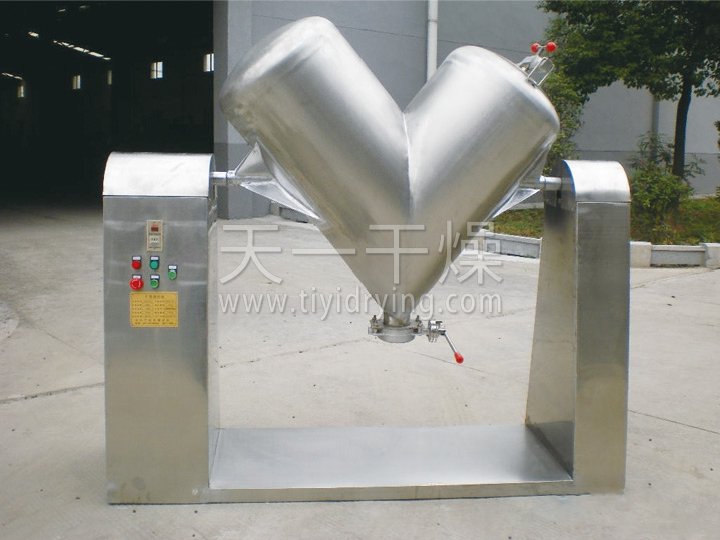

ZKH (V) Mixer

Characteristics

The structure of mixing barrel is unique and the mixing efficiency is high and no dead corners. The barrel is made of stainless steel with polished treatment so the appearance is beautiful. The mixing uniformity is good and it has a wide application.

FEATURES

The structure of mixing barrel is unique and the mixing efficiency is high and no dead corners. The barrel is made of stainless steel with polished treatment so the appearance is beautiful. The mixing uniformity is good and it has a wide application.

APPLICATION

The mixer is used for mixing the dry granule materials in the medical, chemical, food, metallurgical, and other industries.

MATERIAL TO BE DRYED

The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.

Technical Parameter

Spec \ Item	Total Volume (L)	Material Capcity (L)	Working Capacity (kg)	Rotating Speed (rpm)	Power (kw)	Weight (kg)
0.05	50	25	15	25	0.55	500
0.15	150	75	45	20	0.75	650
0.3	300	150	90	20	1.1	820
0.5	500	250	150	18	1.5	1250
1	1000	500	300	15	3	1800
1.5	1500	750	450	12	4	2100
2	2000	1000	600	12	5.5	2450
3	3000	1500	900	9	5.5	2980
4	4000	2000	1200	9	7.5	3300
5	5000	2500	1500	8	7.5	3880
6	6000	3000	1800	8	11	4550
8	8000	4000	2400	6	15	5200
10	10000	5000	3000	6	18.5	6000
