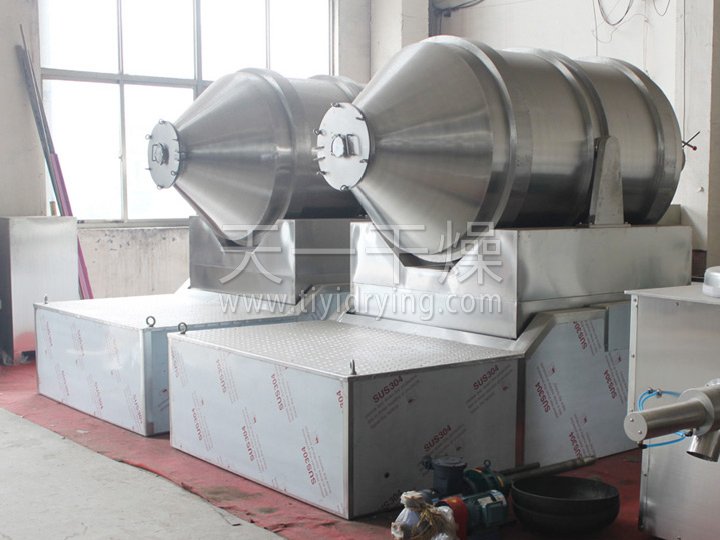

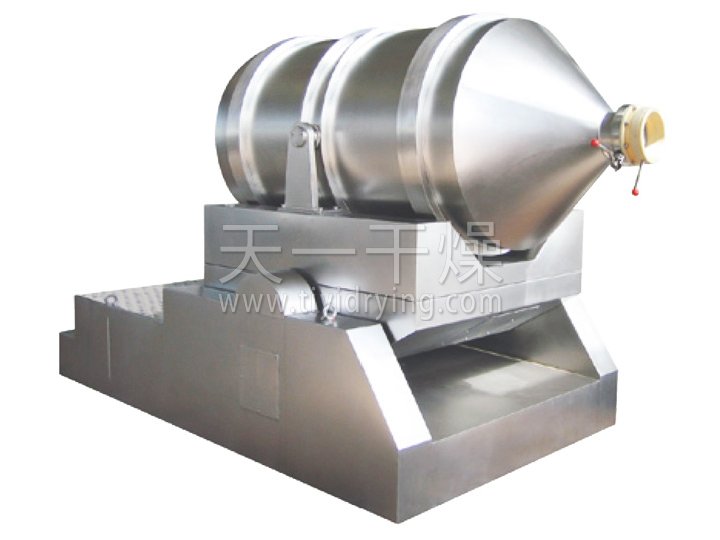

EYH 2D Motion Mixer

WORKING PRINCIPLE

EYH Series 2D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.

FEATURES

EYH Series 2D Motion Mixer (2D mixer & 2D blender) can make two motions at the same time. One motion is the rotation of the cylinder and the other motion is swing of the cylinder along the swinging rack. The materials will be rotated when the cylinder is rotating and mixed when the cylinder is swinging left and right. As a result of two motions, materials can be fully mixed in a short time. This mixer is suitable for mixing of power and granule materials.

Structure diagram

Technical Parameter

Spec	Gross volume （L）	Feed rate	Feed weight （kg）	Overall dimensions（mm）						Power（kw)
				A	B	C	D	M	H	Rotation	Sway
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	2100	5000	4400	18.5	15

Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.
