Through the vacuum conveyor the machine, send the powder or grain s tate materials into the double-taper container, or send the materials into the container manually.It’s energy saving, e asy for operation, the labor tensity…
0086-18962409901

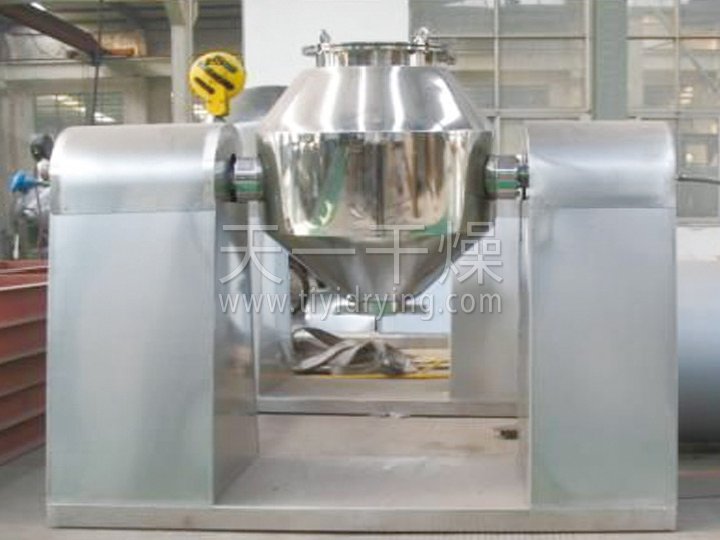

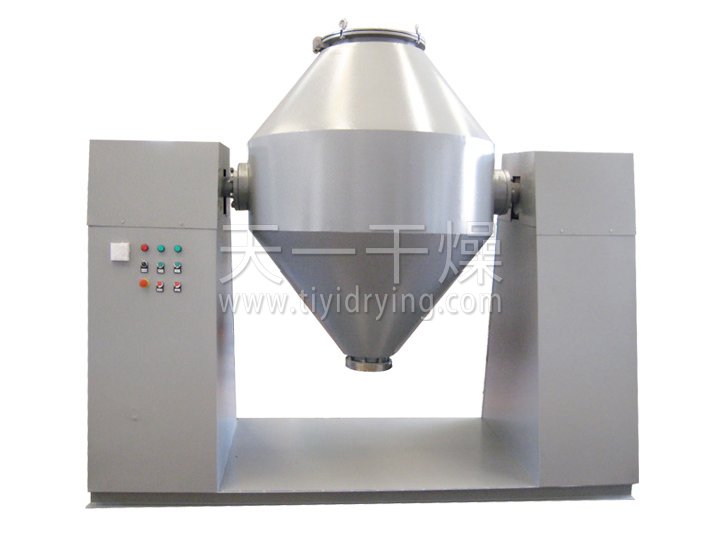

1. The powder or granule material is fed into the double cone container through the vacuum conveyor or manually. The double cone container is rotating continuously to create the compound crushing motion until the material is mixed uniformly. 2. Energy saving, easy for operation, low labor cost, and high efficiency.
| Spec \ Item |
Total Volume
(L)
|
Material Capcity
(L)
|
Working Capacity
(kg)
|
Rotating Speed
(rpm)
|
Power
(kw)
|
Weight
(kg)
|
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
