FS Square Vibrating Sieve

DESCRIPTION

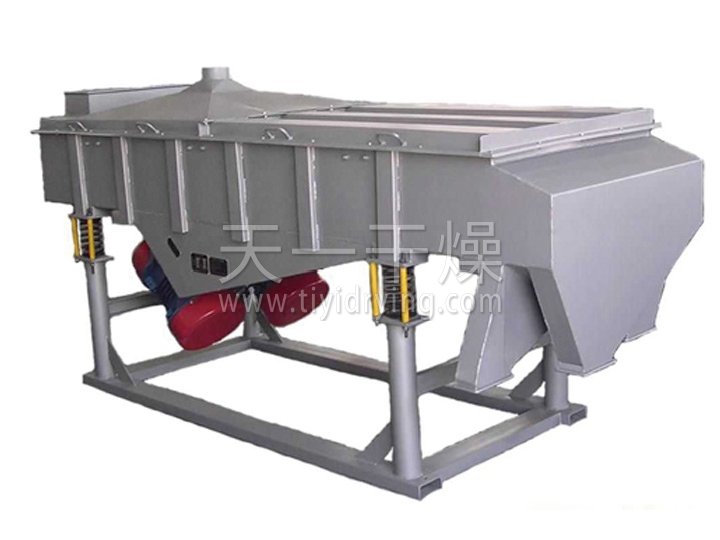

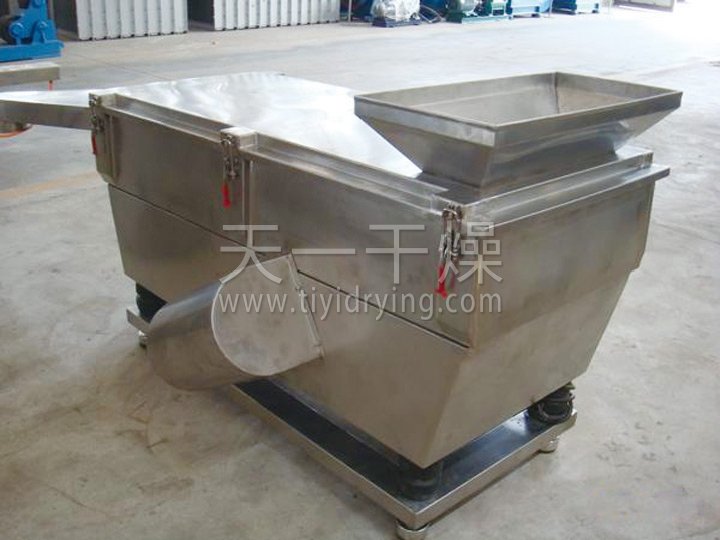

This machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber shock absorber connected between base and screen box in up-down order. Centrifugal force is generated upon starting of the machine. Control shock absorber against amplitude eccentric device correspondingly for best performance and material screening process in throwing vibration and loose. It is the ideal choice for pharmaceutical, food, chemical, metallurgy and electronic industries.

Technical Parameter

Spec	Capacity (kg/h)	Meshes (mesh)	Power (kw/h)	Vibration frequency (r/min)	Vibration power (kN)	The height of upper exit	The height of mid exit	The height of low exit	Overall dimension (L×W×H)	Weight (kg)
FS-0.5M2-X	450	2-150	0.2×2	1400	0-2.5×2	800	680	500	1300×770 ×1060	220
FS-0.7M2-X	650	2-150	0.2×2	1400	0-2.5×2	850	750	530	1700×680 ×1100	280
FS-0.8M2-X	750	2-150	0.2×2	1400	0-2.5×2	850	750	530	1600×830 ×1150	320
FS-1.2M2-X	1100	2-150	0.2×2	960	0-5×2	880	760	520	1900×980 ×1220	450
