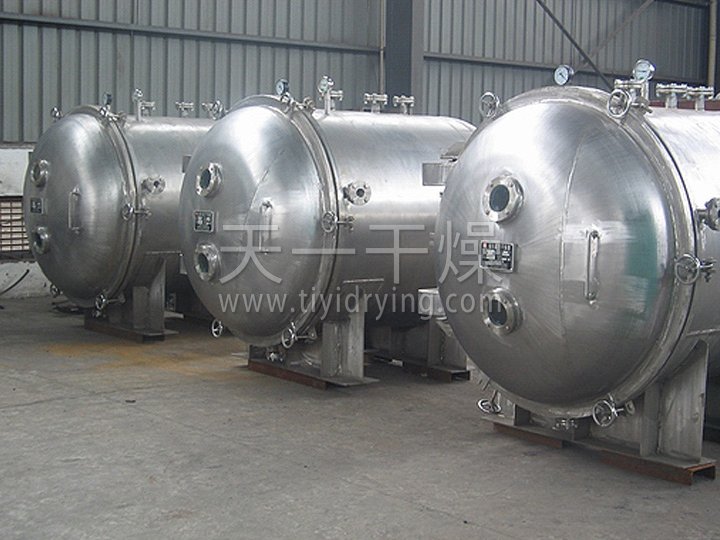

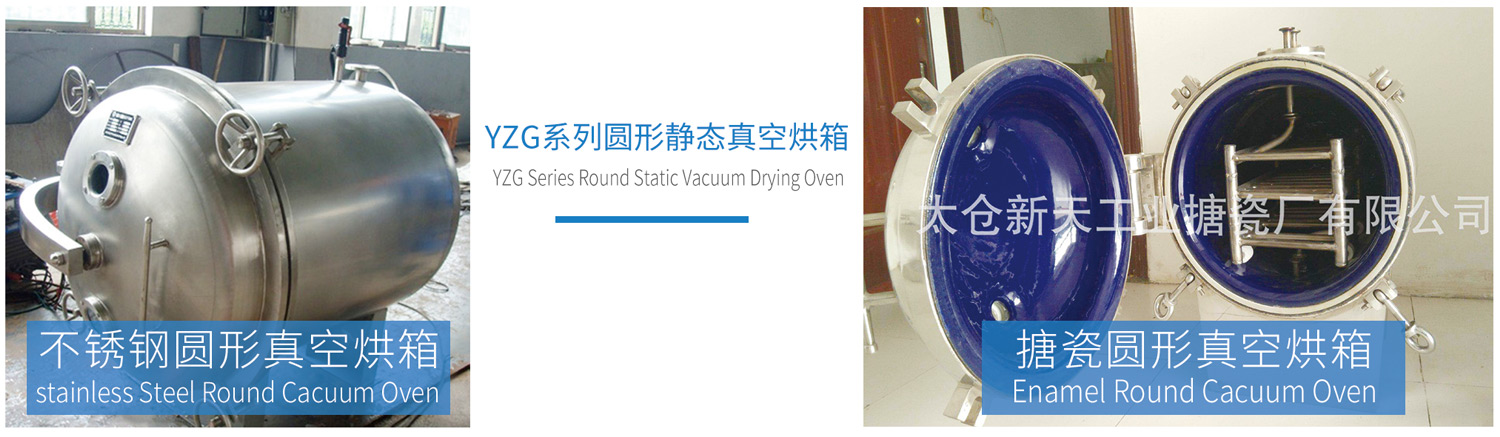

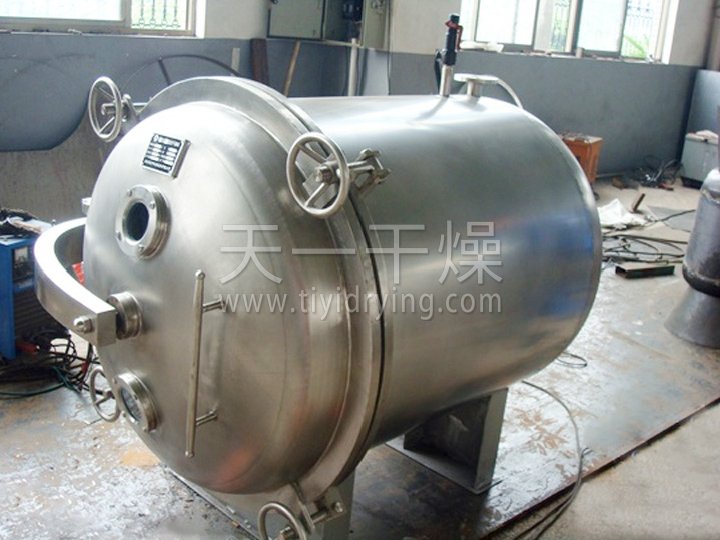

YZG Round Static Vacuum Dryer (enamel/stainless steel)

FEATURES

1) The boiling point of raw material will be decreased under the vacuum condition and make the evaporator increases the pushing force of heat transfer.

2) The heat source can be low pressure steam or waste heat;

3) The loss of the heat during the evaporation is only a little.

4) The disinfection treatment can be carried out before drying and there is no impurity material mixing during drying process. It is in conformity with the requirement of GMP;

5) Static vacuum dryer will not damage the shape of raw materials.

WORKING PRINCIPLE

Vacuum Drying is to let the raw material to be dried at vacuum condition. It uses vacuum pump to pump damp air out and make the working chamber form vacuum status. Therefore, the drying speed of raw material is improved and the energy is saved greatly. Notes: The solvent of raw material can be collected by using a condenser. If the solvent is water, the condenser is not required in order to save investment cost.

APPLICATION

This dryer is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.

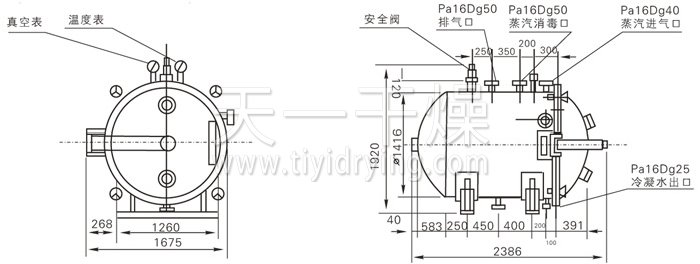

Structure diagram

Technical parameters

Item / Specification	YZG-600	YZG-800	YZG-1000	YZG-1400A
Inner Dimension of the Dryer (mm)	Φ600×976	Φ800×1247	Φ1000×1527	Φ1400×2054
Outer Dimension of the Dryer (mm)	1135×810×1024	1700×1045×1335	1693×1190×150	2386×1675×1920
Qty of Layers	4	4	6	8
Distance of Layers	82	82	102	102
Dimension of Tray (mm)	310×600×45	520×410×45	520×410×45	460×640×45
Qty of Trays	4	8	12	32
Inside Pressure of Drying Rack (MPa)	≤0.784	≤0.784	≤0.784	≤0.784
Working Temperature of Drying Rack (°C)	35-150	35-150	35-150	35-150
Vacuum Degree of Empty Dryer	-0.09～0.096
Water Evaporation Rate (In the condition of -0.1MPa with temperature of 110°C) (kg/m2•hr)	7.2	7.2	7.2	7.2
Vacuum Pump (for the dryers with condenser)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW
Vacuum Pump (for the dryers without condenser)	SK-0.8 2.2KW	SK-2.7 4KW	SK-3 5.5KW	SK-6 11KW
Weight (kg)	250	600	800	1400

Note:SZ water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.

Ordering Information

1) Please choose the suitable model according to the primary moisture content, final moisture content, temperature, vacuum degree, and drying time. The heat source can use steam, hot water, thermal oil, and electricity. If the customer required increasing the drying capacity by add more trays, please specify in the order. 2) If the customer required installation or spare parts, please specify in the order. 3) Customized design service available. 4) We guarantee the quality of the dryer and we ensured the spare parts for the dryer is available in a long term.
