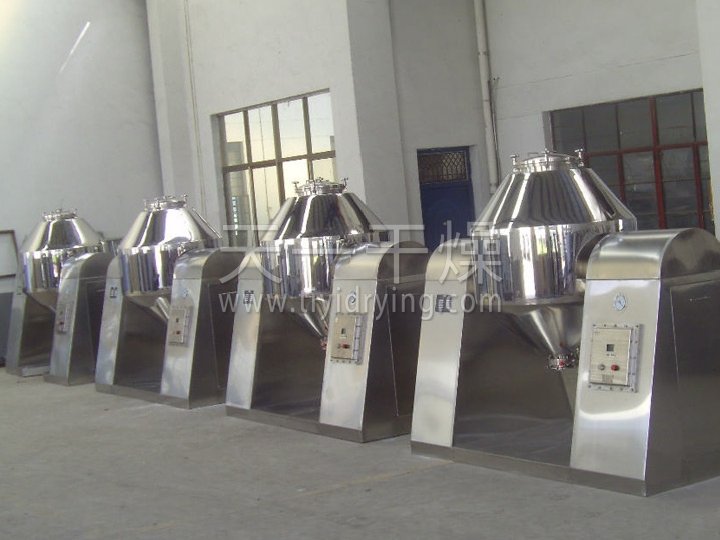

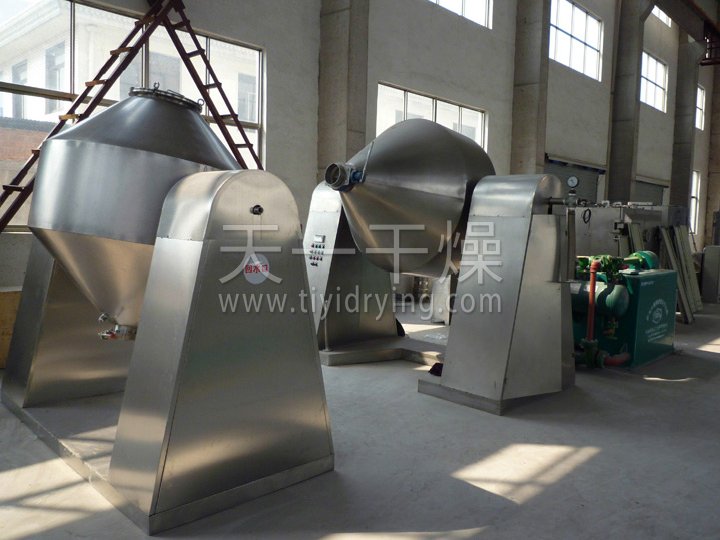

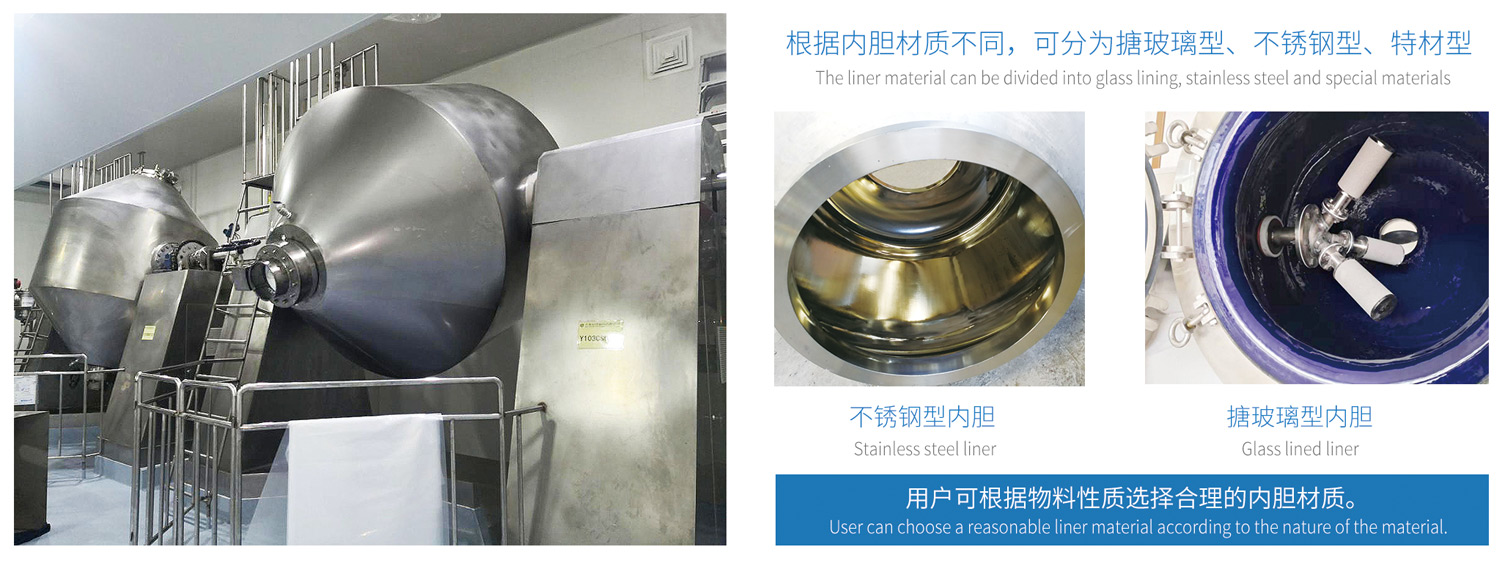

SZG Double Cone Rotary Vacuum Dryer (enamel/stainless steel)

DESCRIPTION

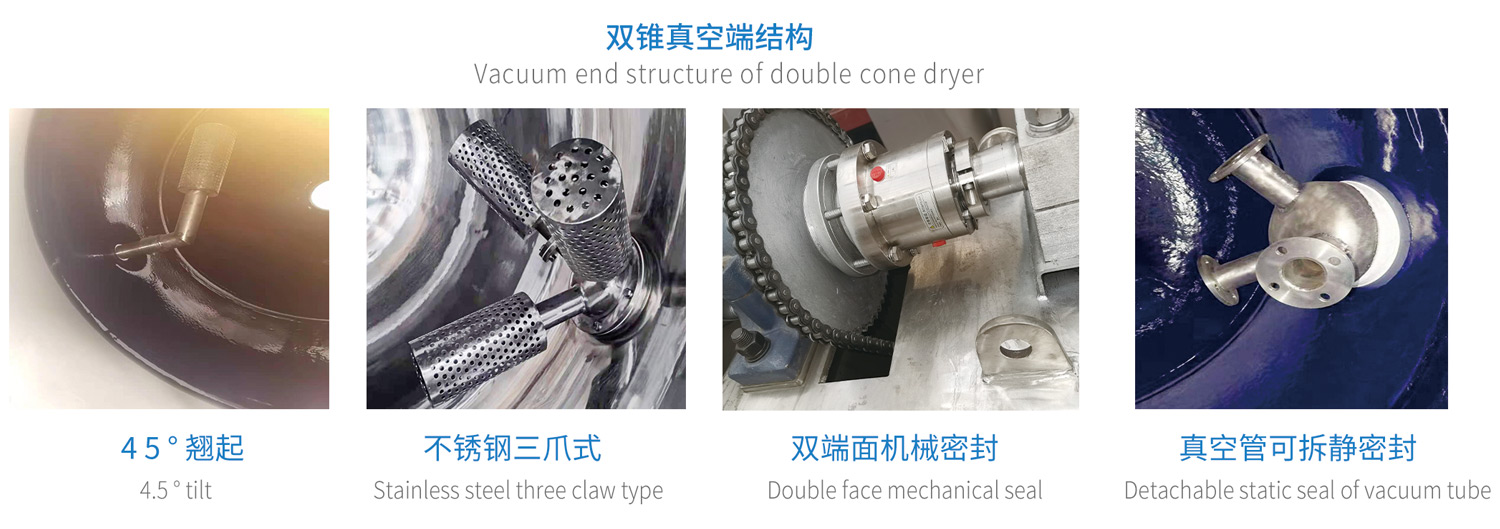

SZG Series Double cone Rotating Vacuum Dryer is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. It has two connecting ways, belt connection and chain connection. Therefore, the dryer is stable in operation. The special design guarantees two shafts realize good concentricity. The heat medium and vacuum system all adapt reliable rotating connector with the technology from USA. On this basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control. As a specialized factory in drying industry, we supply hundred sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw material, we have designed specially a stirring plate buffer for you.

WORKING PRINCIPLE

1) When the heat source (hot water, low pressure steam, or thermal oil) pass through the sealed jacket, the heat will be transmitted to raw material through the inner shell;

2) Under action of driving power, the tank is rotated slowly and the raw material is mixed continuously. The purpose of reinforced drying can be realized;

3) The raw material is under vacuum condition. When steam pressure is dropping, it makes the moisture (solvent) at the surface of raw material become saturation and then evaporates. The solvent will be discharged through vacuum pump.

4) The moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously.

5) The production processes are carried out continuously and the drying can be done in a short time.

APPLICATION

This dryer is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.

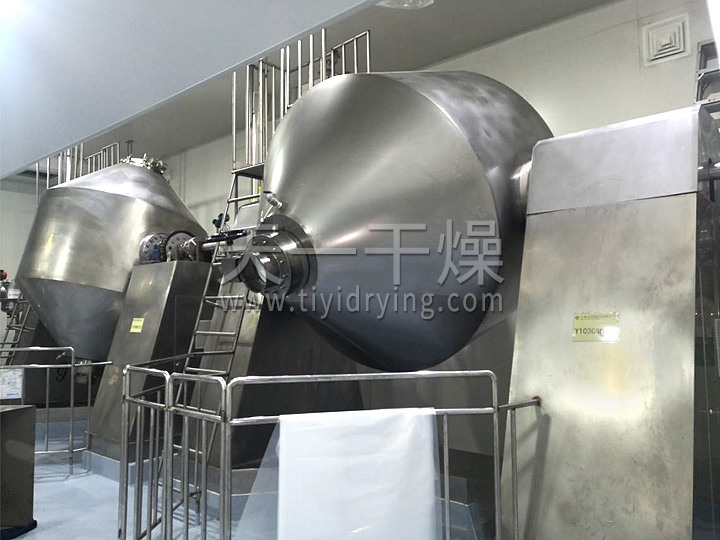

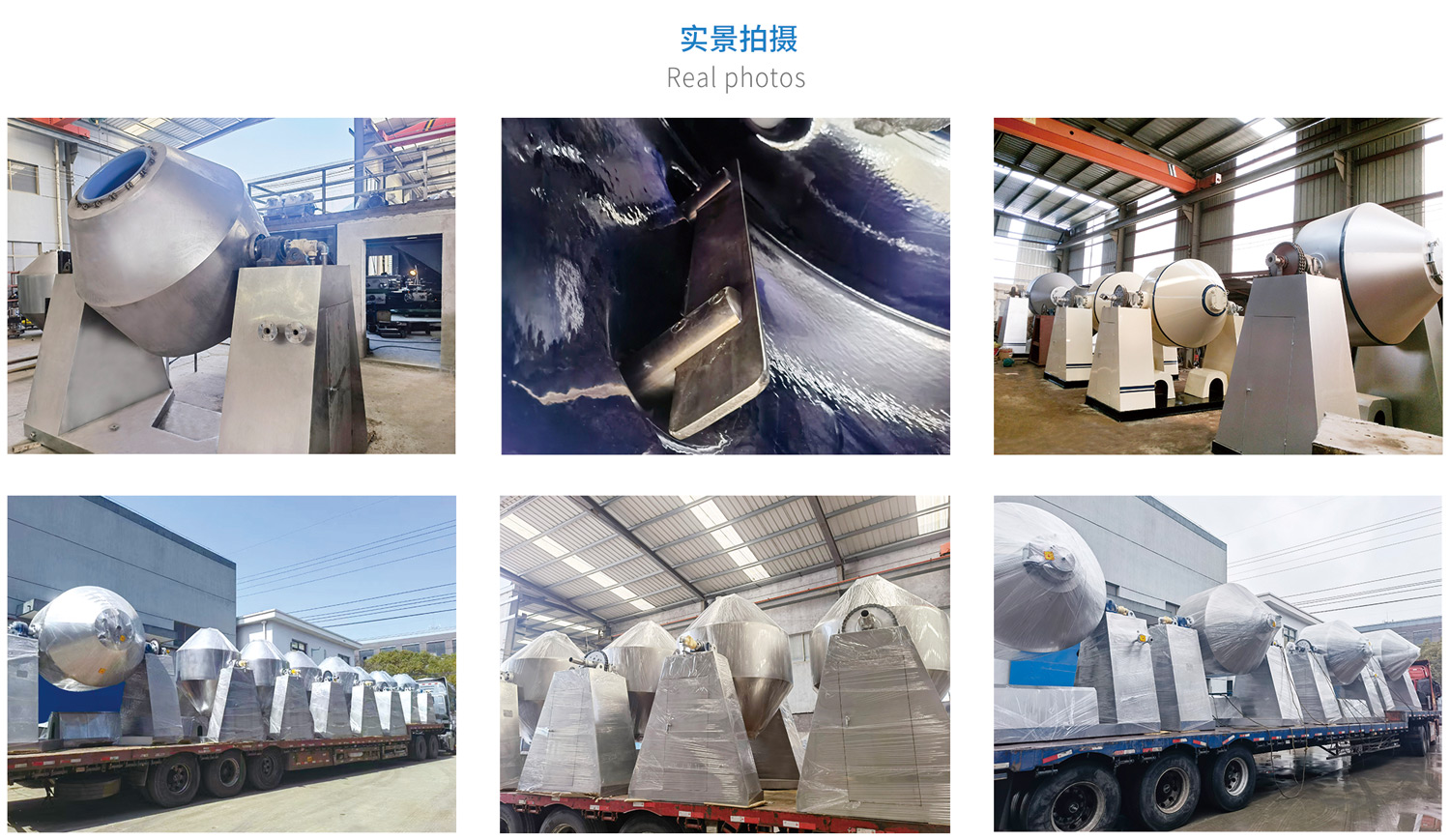

Installation demonstration

FEATURES

1) Use automatic constant temperature control if the heat source is thermal oil. It can be used for drying biology products and mineral raw materials. The temperature of operation can be adjusted form 20 ~ 160°C. 2) The heat efficiency will be 2 times or higher comparing to the common dryer. 3) The heating method is indirect drying so the raw material will not be polluted. It is in conformity with the requirement of GMP. 4) The dryer is easy for cleaning and maintenance.

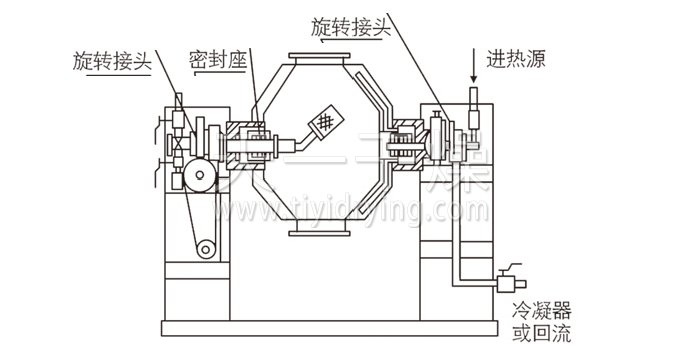

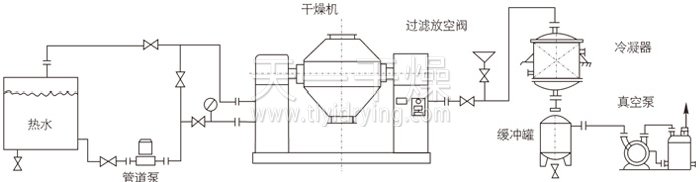

Structure diagram

TECHNICAL PARAMETERS

Item \ Model	100	350	500	750	1000	1500	2000	3500	4500	5000
volume inside the tank (L)	100	350	500	750	1000	1500	2000	3500	4500	5000
Volume to fill raw material (L)	≤50	≤175	≤250	≤375	≤500	≤750	≤1000	≤1750	≤2250	≤2500
Heating area (m2)	1.16	2	2.63	3.5	4.61	5.58	7.5	11.2	13.1	14.1
revolution (rpm)	4 - 6
power of motor (kw)	0.75	1.1	1.5	2	3	3	4	5.5	7.5	11
occupiedarea, L×W (mm)	2160×800	2260×800	2350×800	2560×1000	2860×1300	3060×1300	3260×1400	3760×1800	3960×2000	4400×2500
rotating height (mm)	1750	2100	2250	2490	2800	2940	2990	3490	4100	4200
design pressure inside the tank (MPa)	-0.1-0.15
design pressure of jacket (MPa)	≤0.3
working temp-erature(°C)	In the tank≤85 jacket≤140
When use con-densator,	2X-15A	2X-15A	2X-30A	2X-30A	2X-70A	JZJX300-8	JZJX300-4	JZJX600-8	JZJX600-4	JZJX300-4
model and power of vacuum pump	2KW	2KW	3KW	3KW	505KW	7KW	9.5KW	11KW	20.5KW	22KW
When don,t use condensator,	SK-0.4	SK-0.8	SK-0.8	SK-2.7B	SK-2.7B	SK-3	SK-6	SK-6	SK-9	SK-10
model and power of vacuum pump	1.5KW	2.2KW	2.2KW	4KW	4KW	5.5KW	11KW	11KW	15KW	18.5KW
Weight (kg)	800	1100	1200	1500	2800	3300	3600	6400	7500	8600
