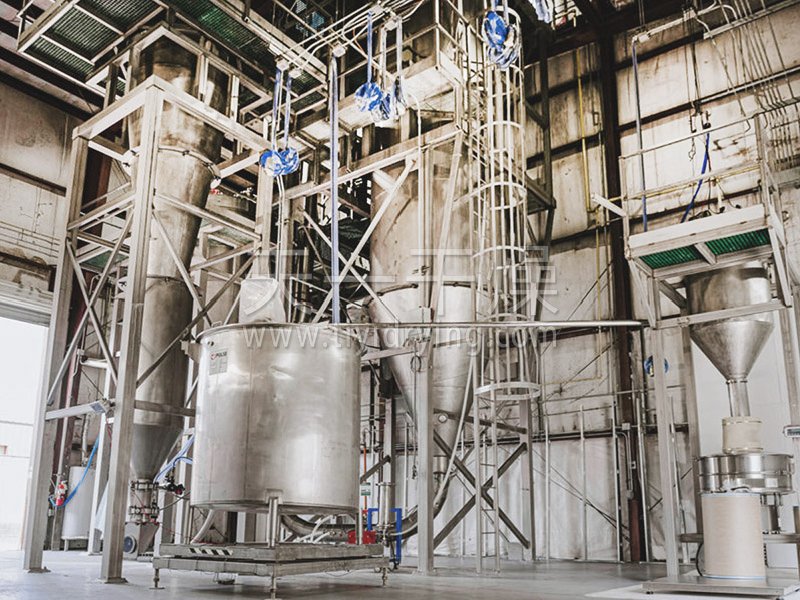

Titanium dioxide centrifugal spray dryer

Overview of titanium dioxide

Titanium dioxide, a white solid or powdered amphoteric oxide with a molecular weight of 79.87, is a white inorganic pigment with non-toxic properties, good opacity, whiteness, and brightness. It is considered an ideal white pigment for its current performance. Titanium dioxide has strong adhesion and is not prone to chemical changes, and its color is snow-white.

It can be applied in industries such as coatings, plastics, papermaking, printing ink, chemical fiber, rubber, cosmetics, etc. It has a high melting point and is also used to manufacture refractory glass, glaze, enamel, clay, high-temperature resistant experimental vessels, etc. Titanium dioxide is an important white pigment and porcelain glaze. Used in industries such as paint, ink, plastic, rubber, papermaking, chemical fiber, watercolor pigments, etc.

Working principle of titanium dioxide centrifugal spray dryer

The air is filtered and heated, entering the top air distributor of the dryer, and the hot air enters the drying chamber in a spiral and uniform manner. The feed liquid passes through the high-speed centrifugal atomizer on the top of the tower body, and (rotating) spray into extremely fine mist like liquid beads, which can be dried into finished products in a very short time in parallel with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is discharged by the fan.

Technical parameters of centrifugal spray dryer

Model / Project / Parameters	5	25	50	150	200-2000
Inlet temperature	140-350 Automatic control
Outlet temperature	80-90
Upper limit of water evaporation (kg/h)	5	25	50	150	200-2000
Drive type of centrifugal spray head	Compressed air transmission	Mechanical drive
Upper limit of rotational speed (r.p.m.)	25000	18000	18000	15000	8000-15000
Spray disc diameter (mm)	50	120	120	150	180-240
Heat source	Electricity	Steam+Electricity	Steam+electricity, fuel oil, gas, hot air stove
Upper limit of electric heating power (kW)	9	36	72	99
Overall dimensions (length × wide × Height) (m)	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	Determine based on actual situation
Dry powder recycling(%)	≥95

Note: The amount of water evaporation is related to the characteristics of the material and the temperature of the thermal inlet and outlet. When the outlet temperature is 90oC, the water evaporation curve is shown in the above figure (for selection reference). As the product is constantly updated, relevant parameters are subject to change without prior notice.
