FL, FG Fluidizing And (Granulating) Dryer

FEATURES

1. The powder granulating can improve the liquidity and reduce dust; 2. The powder granulating can improve the solubility; 3. Mixing, granulating, and drying can be done by the same machine(one step granulation); 4. Use electrostatic to filter materials, safe working condition; 5. The atomizer for adhesive adapts multiple spray lances, the particle is uniform and the qualified rate of finished product is high; 6. There is no dead corner in granulator so the feeding and discharging is quick and convenience.

APPLICATION

GRANULATING AND COATING

Medicine

- Granulating: Tablet Granule, Quick Solved Granule, Granule Capsule -Coating: Granule, Pill Protection, Formulated Color, Slow Release, Film, Enteric

Foodstuff

- Sugar, Coffee, Cocoa Powder, Cream, Powder Syrup, Amino Acid, Seasonings, Puffed Food

GRANULATING

- Pesticide, Pigment, Dyestuff

DRYING

- Powder, Granule, Block Materials

Characteristics

◎Because of powder granulating, the uidity can be improved and the powder dust can be reduced; ◎Because of powder granulating, the solubility is improved; ◎The procedures of mixing, granulating and drying can be nished in one step(granulating through one step); ◎Because the atomizer for adhesive adapts multi-uid spray lance, the particle is uniform and the percent of pass of nished products is raised greatly; ◎There is no dead corner in equipment. It is quick and convenient to feeding and discharge; ◎The equipment is clean through washing.

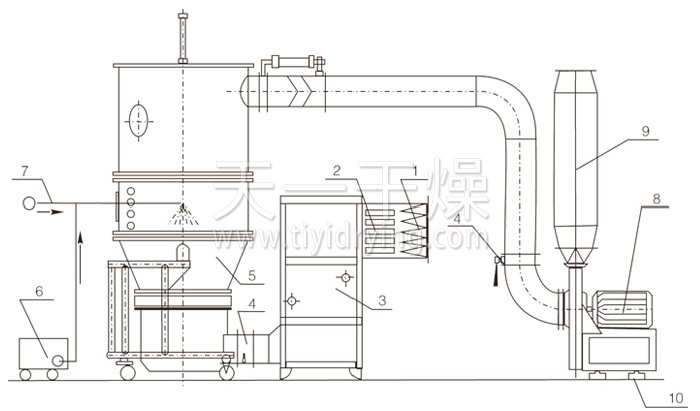

Structure diagram

1. Mid-effect filter 2. Postfilter 3. Heater 4. Distributor 5. Fluldized bed 6. Liquid feeding pump 7. Compressed air 8. Vacuum fan 9. Silencer 10. Vibration eliminator

Technical Parameter

Specification	3	5	15	30	45	60	90	120	150	200	300	500
Volume (L)	12	22	45	100	155	220	300	420	530	660	1000	1500
Amount to be treated (kg/per time)	1.5/4.5	4/6	10/20	15/45	25/65	40/80	60/120	80/160	90/200	100/300	150/450	300/300
Power of fan (kw)	2.2	3	4	5.5	7.5	11	15	18.5	18.5	22	30	37
Consume of steam 0.4MPa (kg/h)	12	23	42	70	99	141	169	211	251	282	366	451
Consume of compressed air (m3/min)	0.3	1.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	0.9	1.3	1.5
Noise,db (A)	（fan is installedseparately）≤75
Overall dimension (m)	1.0x0.55x1.8	1.2x0.6x2.1	1.25x0.9x2.1	1.6x0.9x2.3	1.65x1.1x2.4	1.85x1.25x3	1.85x1.25x3	2.2x1.65x3.1	2.27x1.72x3.1	2.34x1.9x3.5	2.8x1.9x3.8	3x2.55x4.2

Note: Model FG can not be equipped with granulating part.
